One of the most powerful thinks that you can accomplish with docker on Raspberry Pi is that we can use it for a multipurpose home server installin a number of microservices each one independent from others. At the same time, docker allows you to waste and rebiuld a service with a single command, meeting your harware resources management needs and allowing you to test and re-test if someting is going wrong at the firts stages of your project.
Today, we are going to setup my favourite open source motion detection software inside a container.
What we need
- Raspberry PI kit (including power supply and SD card) – I’m using the recent Raspberry Pi A+, but the same steps should work for PI 3 and PI 4
- Raspberry Pi Camera
The steps follows our previous guides to prepare our environment:
- Install Raspbian stretch lite (please find here the step-by-step guide)
- Install Docker (please find here the step-by-step guide)
I want to use a personal network created in my docker environment that I called “local”. It can be done simply by:
docker network create local
Our motioneye service has its own port (8765) to expose the web gui, but I’ll use a personal port to my host (port number 5000).
Preparing the device
Before all, we must enable our Raspberry to map our camera to the path “/dev/video0”. This path will be passed to our container to reach video stream. So, the command will be:
here we must select “Interfacing Options“, select “P1 Camera” and select yes to enable our device. this requires a reboot so, as already said in Docker installation post, reboot and wait for boot operations to be completed and docker service to be up and running.
Now, check that we correctly configured our Camera:
this should return “supported=1 detected=1”. If not, it could be needed to install v4L2 drive:
sudo rpi-update # To make sure the v4L2 drive is available. A reboot is required
sudo modprobe bcm2835-v4l2 # to load it and create /dev/video0
Install the container
Here comes the power od Docker. The command to make our service up is simply (copy entire command in single line):
docker run --name="motioneye" --network="local" --device=/dev/video0 -p 5000:8765 -p 465:465 -p 587:587 -p 8081:8081 --hostname="motioneye" --restart="always" --detach=true ccrisan/motioneye:master-armhf
Below the explaination of every part of the command:
- –name=”motioneye”: gives the mnemonic name “motioneye” to our container, you can show it with command “docker ps”
- –network=”local”: attaches cour container to “local” network previously created (optional)
- –device=/dev/video0: gives the container the ability to interface directly our camera using host devices
- -p xxx:xxx: this maps ports used by container. In our line we have mapped a few ports for different purposes:
- -p 5000:8765: this string means that container local port 8765 (which is motioneye web gui port) to host port 5000, so that we can reach motioneye webgui with host IP and port. This port mapping is mandatory if you want to reach the web interface
- -p 465:465 -p 587:587: these 2 mappings allow motioneye to be configured to send mails. This is required if you want to receive motion detection alerts by mail by common smtp services like Google SMTP (465 is for SSL, 587 is for TLS)
- -p 8081:8081: this mapping is required if you want to export your media streaming to other services capable to manage it
- –hostname=”motioneye”: this command set container hostname to motioneye, for docker internal communication (optional)
- –restart=”always”: this forces our container to automatically restart if it stops. If it is manually stopped, it is restarted only when Docker daemon restarts or the container itself is manually restarted.
- –detach=true: this run container in background
- ccrisan/motioneye:master-armhf: this select the image we want to use. We need the “arm” version of image because raspberry is based on arm processor
Wait for prompt to be back. Our videosurveillanece service is quite ready. Complete the setup with our web browser. With your raspberry ip in mind (in my case “192.168.1.177”, but use your one) and the host port setted (in my case 5000), browse the address:
to retrieve the motioneye login page:
Insert default motioneye credentials:
- Username: admin
Next screen notifies (only for the first login) that there aren’t yet any cameras configured. Click “Click here to add one…”:
Configure camera settings as for the following image:
- Camera Type: Local V4L2 Camera
- Camera: mmal service 16.1

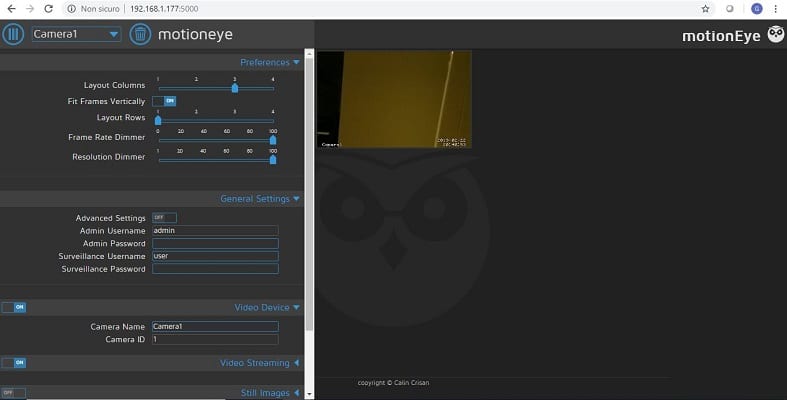

and confirm clicking “OK”. Next screen will show you Motioneye service working (with your camera stream online) and ready to be configured at your likes.
